SN74LVC2G14

正在供货

具有施密特触发输入的 2 通道、1.65V 至 5.5V 反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This dual Schmitt-trigger inverter is designed for
1.65-V to 5.5-V V_CC operation.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

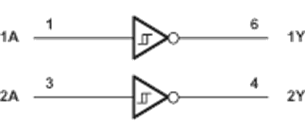

The SN74LVC2G14 device contains two inverters and performs the Boolean function Y = A. The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (V_T+) and negative-going (V_T–) signals.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For all available packages, see the orderable addendum at the end of the data sheet.

Available in the TI NanoFree Package
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 5.4 ns at 3.3 V
Low-Power Consumption, 10-μA Maximum I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Support Translation Down
(5 V to 3.3 V; 3.3 V to 1.8 V)
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

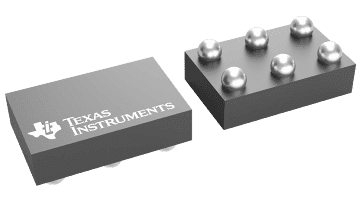

DSBGA (YZP)	6	2.1875 mm² 1.75 x 1.25

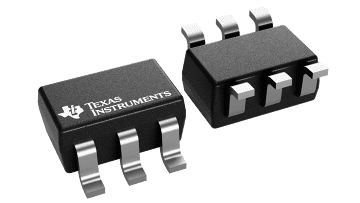

SOT-23 (DBV)	6	8.12 mm² 2.9 x 2.8
SOT-SC70 (DCK)	6	4.2 mm² 2 x 2.1
