This single inverter gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
The SN74AUC1GU04 device contains one inverter with an unbuffered output and performs the Boolean function Y = A.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
| Technology family | AUC |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 2.7 |
| Number of channels | 1 |
| IOL (max) (mA) | 9 |
| IOH (max) (mA) | -9 |
| Supply current (max) (µA) | 10 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns), Unbuffered |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

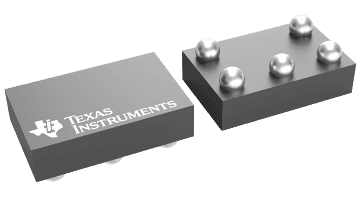

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |

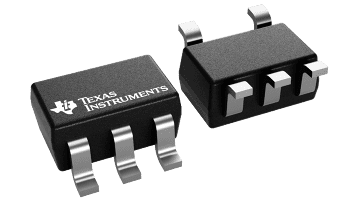

| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |
