This single inverter buffer/driver is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
The output of the SN74AUC1G06 is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
NanoStar™ and NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
For more information about AUC Little Logic devices, please refer to the TI application report, Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.
NanoStar, NanoFree are trademarks of Texas Instruments.
| Technology family | AUC |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 2.7 |
| Number of channels | 1 |
| IOL (max) (mA) | 9 |
| IOH (max) (mA) | 0 |
| Supply current (max) (µA) | 10 |
| Input type | Standard CMOS |
| Output type | Open-drain |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

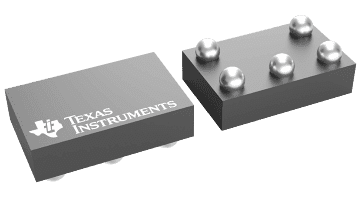

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |
