SN74AUC1G04

正在供货

单路 0.8V 至 2.7V 高速反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This single inverter gate is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC1G04 performs the Boolean function Y = A.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the ouput, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, see Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, SCEA027.

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial Power Down Mode and Back Drive Protection
Sub-1-V Operable
Max t_pd of 2.2 ns at 1.8 V
Low Power Consumption, 10-µA Maximum I_CC
±8-mA Output Drive at 1.8 V

Technology family	AUC
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	2.7
Number of channels	1
IOL (max) (mA)	9
IOH (max) (mA)	-9
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 85

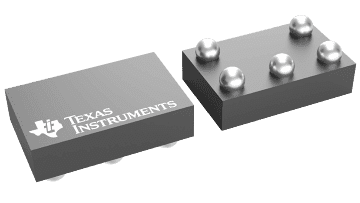

DSBGA (YZP)	5	2.1875 mm² 1.75 x 1.25

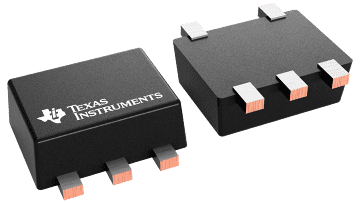

SOT-23 (DBV)	5	8.12 mm² 2.9 x 2.8
SOT-5X3 (DRL)	5	2.56 mm² 1.6 x 1.6
SOT-SC70 (DCK)	5	4.2 mm² 2 x 2.1

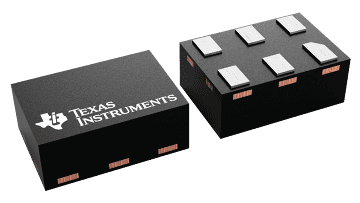

USON (DRY)	6	1.45 mm² 1.45 x 1
