This single 2-input positive-NOR gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
The SN74AUC1G02 performs the Boolean function Y = A + B or Y = A • B in positive logic.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
For more information about AUC Little Logic devices, please refer to the TI application report, Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.
NanoFree is a trademark of Texas Instruments.
| Technology family | AUC |
| Number of channels | 1 |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 2.7 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 9 |
| IOH (max) (mA) | -9 |
| Output type | Push-Pull |
| Input type | Standard CMOS |
| Features | Over-voltage tolerant Inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
| Data rate (max) (Mbps) | 250 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

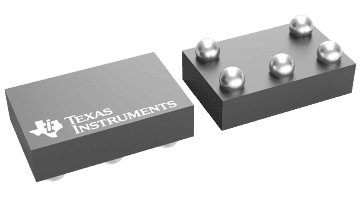

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |

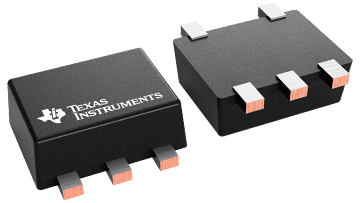

| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-5X3 (DRL) | 5 | 2.56 mm² 1.6 x 1.6 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |
