The SN74LVC3G34 device is a triple buffer gate designed for 1.65-V to 5.5-V VCC operation. The SN74LVC3G34 device performs the Boolean function Y = A in positive logic.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
All trademarks are the property of their respective owners.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 3 |
| IOL (max) (mA) | 32 |
| Supply current (max) (µA) | 10 |
| IOH (max) (mA) | -32 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

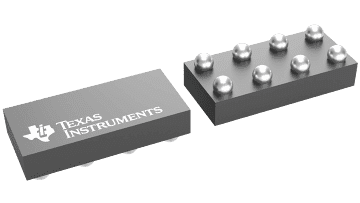

| DSBGA (YZP) | 8 | 2.8125 mm² 2.25 x 1.25 |

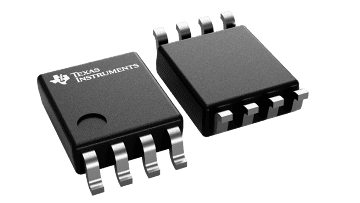

| SSOP (DCT) | 8 | 11.8 mm² 2.95 x 4 |

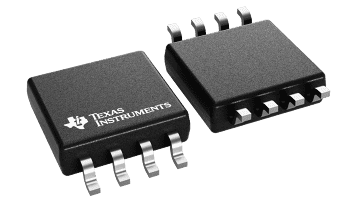

| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
