LF411QML-SP

正在供货

航天级、单路、30V、3MHz、低失调电压运算放大器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This device is a low cost, high speed, JFET input operational amplifier with very low input offset voltage and ensured input offset voltage drift. It requires low supply current yet maintains a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF411QML is pin compatible with the standard LM741 allowing designers to immediately upgrade the overall performance of existing designs.

This amplifier may be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth.

Available with Radiation Specification
- ELDRS FREE 100 krad(Si)
Internally Trimmed Offset Voltage: 0.5 mV(Typ)
Input Offset Voltage Drift: 10 μV/°C

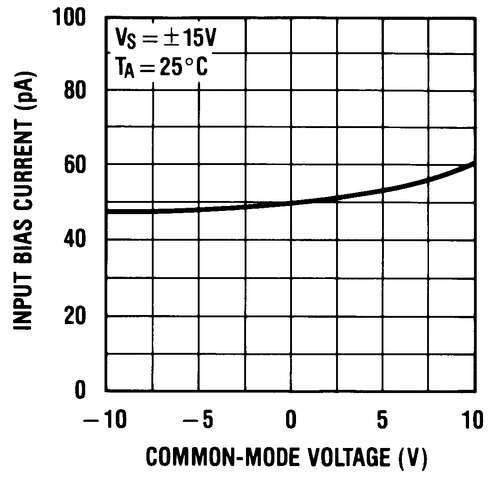

Low Input Bias Current: 50 pA
Low Input Noise Current: 0.01 pA/√Hz
Wide Gain Bandwidth: 3 MHz
High Slew Rate: 10V/μs
Low Supply Current: 1.8 mA
High Input Impedance: 10¹²Ω
Low Total Harmonic Distortion: A_V = 10, R_L = 10KΩ, V_O = 20V_P-P, BW = 20Hz - 20KHz <0.02%
Low 1/f Noise Corner: 50 Hz
Fast Settling Time to 0.01%: 2 μs

All trademarks are the property of their respective owners.

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	44
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	10
Rail-to-rail	No
GBW (typ) (MHz)	3
Slew rate (typ) (V/µs)	15
Vos (offset voltage at 25°C) (max) (mV)	2
Iq per channel (typ) (mA)	2
Vn at 1 kHz (typ) (nV√Hz)	18
Rating	Space
Operating temperature range (°C)	-55 to 125
Offset drift (typ) (µV/°C)	10
Input bias current (max) (pA)	200
CMRR (typ) (dB)	100
Iout (typ) (A)	0.025
Architecture	FET
Radiation, TID (typ) (krad)	100
Radiation, SEL (MeV·cm2/mg)	Bipolar
Input common mode headroom (to negative supply) (typ) (V)	3.5
Input common mode headroom (to positive supply) (typ) (V)	0.5
Output swing headroom (to negative supply) (typ) (V)	1.5
Output swing headroom (to positive supply) (typ) (V)	-1.5

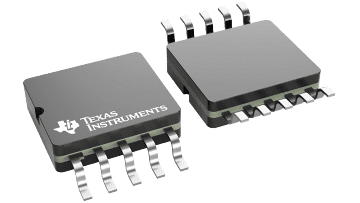

CFP (NAC)

62.9285 mm² 9.91 x 6.35
