SN74LVC2G86

正在供货

2 通道、2 输入、1.65V 至 5.5V XOR（异或）门

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This dual 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC2G86 performs the Boolean function Y = A ⊕ B or Y = AB + AB in positive logic.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

A common application is as a true/complement element. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

An exclusive-OR gate has many applications, some of which can be represented better by alternative logic symbols.

Available in the Texas Instruments NanoFree Package
Supports 5-V V_CCOperation
Inputs Accept Voltages to 5.5 V
Max t_pd of 4.7 ns at 3.3 V
Low Power Consumption, 10-μA Max I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down Mode and Back Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
Inputs per channel	2
IOL (max) (mA)	32
Input type	Standard CMOS
IOH (max) (mA)	-32
Output type	Push-Pull
Features	Over-voltage tolerant Inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 125

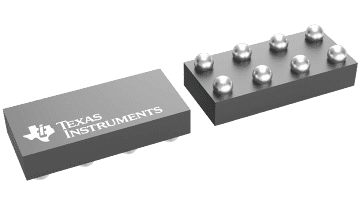

DSBGA (YZP)	8	2.8125 mm² 2.25 x 1.25

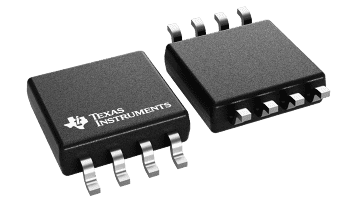

SSOP (DCT)	8	11.8 mm² 2.95 x 4

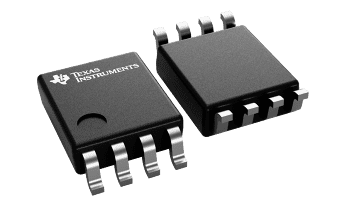

VSSOP (DCU)	8	6.2 mm² 2 x 3.1
