This 16-bit buffer or driver is designed for 1.65-V to 3.6-V VCC operation. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 3.6 |
| Number of channels | 16 |
| IOL (max) (mA) | 12 |
| Supply current (max) (µA) | 20 |
| IOH (max) (mA) | -12 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Damping resistors, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

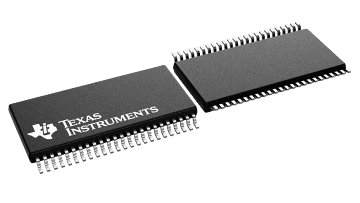

| SSOP (DL) | 48 | 164.358 mm² 15.88 x 10.35 |

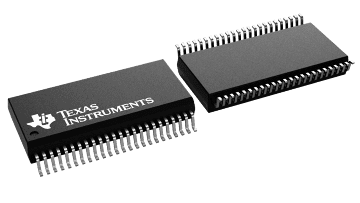

| TSSOP (DGG) | 48 | 101.25 mm² 12.5 x 8.1 |

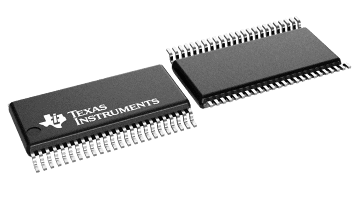

| TVSOP (DGV) | 48 | 62.08 mm² 9.7 x 6.4 |
