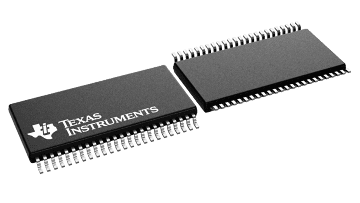

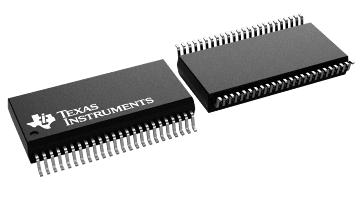

SN74LVC16374A

正在供货

产品详情

This 16-bit edge-triggered D-type flip-flop is designed for 1.65-V to 3.6-V V_CC operation.

Member of the Texas Instruments Widebus Family
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Supports Mixed-Mode Signal Operation on
All Ports (5-V Input and Output Voltages
With 3.3-V V_CC)
Latch-Up Performance Exceeds 250 mA
Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Number of channels	16
Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	3.6
Input type	Standard CMOS
Output type	3-State
Clock frequency (max) (MHz)	100
IOL (max) (mA)	24
IOH (max) (mA)	-24
Supply current (max) (µA)	20
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Operating temperature range (°C)	-40 to 125
Rating	Catalog
