按照设计,此单路双输入正与门可在 1.65V 至 5.5V VCC 电压下运行。
SN74LVC1G08 器件以正逻辑执行布尔函数或 。
CMOS 器件具有高输出驱动,同时在宽 VCC 工作范围内保持低静态功率耗散。
SN74LVC1G08 采用多种封装,包括外形尺寸为 0.8mm × 0.8mm 的超小型 DPW 封装。
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 1 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 32 |
| IOH (max) (mA) | -32 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
| Data rate (max) (Mbps) | 100 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

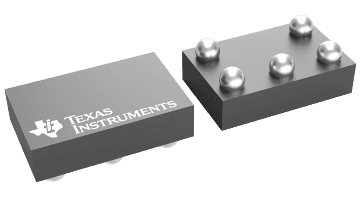

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |

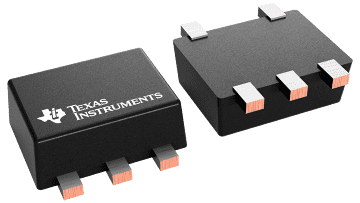

| SOT-5X3 (DRL) | 5 | 2.56 mm² 1.6 x 1.6 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |

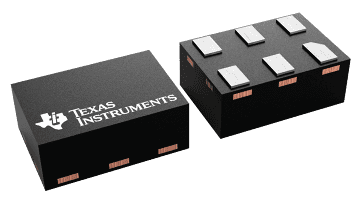

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |
| X2SON (DPW) | 5 | 0.64 mm² 0.8 x 0.8 |

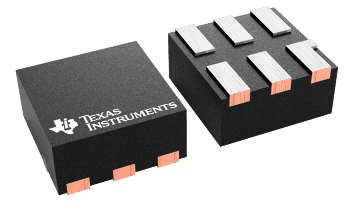

| X2SON (DSF) | 6 | 1 mm² 1 x 1 |
