CD4508B dual 4-bit latch contains two identical 4-bit latches with separate STROBE, RESET, and OUTPUT DISABLE control. With the STROBE line in the high state, the data on the "D" inputs appear at the corresponding "Q" outputs provided the DISABLE line is in the low state. Changing the STROBE line to the low state locks the data into the latch. A high on the reset line forces the outputs to a low level regardless of the state of the STROBE input. The outputs are forced to the high-impedance state for bus line applications by a high level on the DISABLE input.

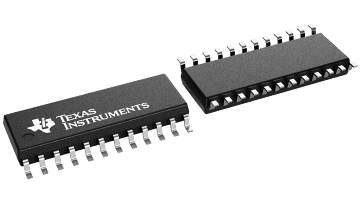

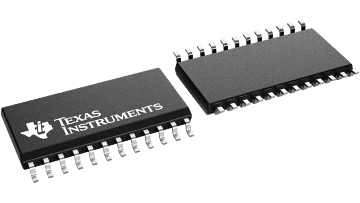

The CD4508B types are supplied in 24-lead hermetic dual-in-line ceramic packages (F3A suffix), 24-lead dual-in-line plastic packages (E suffix), 24-lead small-outline packages (M, M96, and NSR suffixes), and 24-lead thin shrink small-outline packages (PW and PWR suffixes).
The CD4508B is similar to industry type MC14508.
| Number of channels | 8 |
| Technology family | CD4000 |
| Supply voltage (min) (V) | 3 |
| Supply voltage (max) (V) | 18 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Clock frequency (max) (MHz) | 8 |
| IOL (max) (mA) | 2.4 |
| IOH (max) (mA) | -2.4 |
| Supply current (max) (µA) | 3000 |
| Features | High speed (tpd 10-50ns), Partial power down (Ioff), Standard speed (tpd > 50ns) |
| Operating temperature range (°C) | -55 to 125 |
| Rating | Catalog |
| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |
| SOP (NS) | 24 | 117 mm² 15 x 7.8 |
| TSSOP (PW) | 24 | 49.92 mm² 7.8 x 6.4 |
