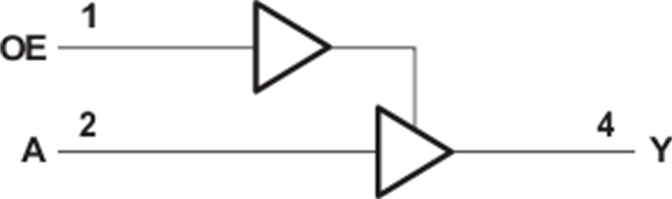

This single buffer is designed for 1.65-V to 3.6-V VCC operation. The LVC1G126 device is a single line driver with 3-state output. The output is disabled when the output-enable input is low.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 1 |
| IOL (max) (mA) | 32 |
| Supply current (max) (µA) | 10 |
| IOH (max) (mA) | -32 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

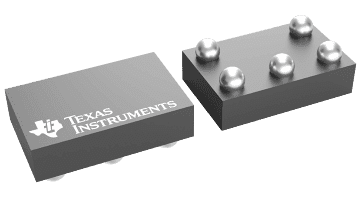

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |

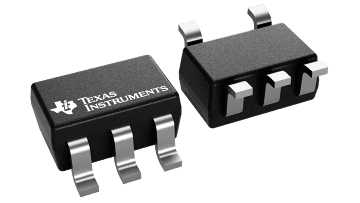

| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-5X3 (DRL) | 5 | 2.56 mm² 1.6 x 1.6 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |

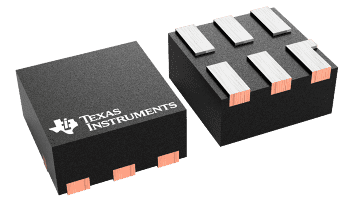

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |

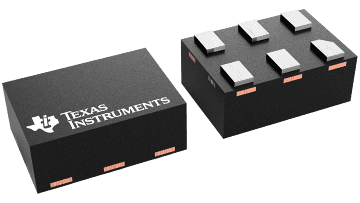

| X2SON (DSF) | 6 | 1 mm² 1 x 1 |
