SN74LVC1G32

正在供货

产品详情

This single 2-input positive-OR gate is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC1G32 device performs the Boolean function Y = A + B or Y = A + B in positive logic.

The CMOS device has high output drive while maintaining low static power dissipation over a broad V_CC operating range.

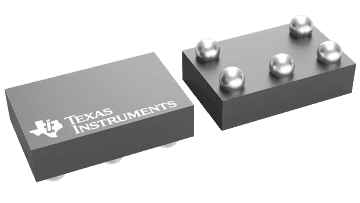

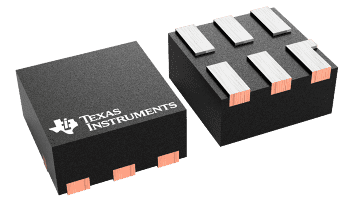

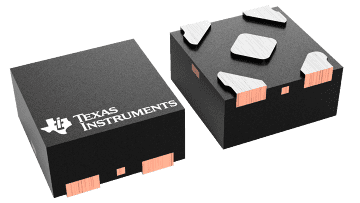

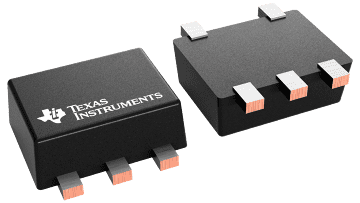

The SN74LVC1G32 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 × 0.8 mm.

Available in the Ultra-Small 0.64 mm²
Package (DPW) with 0.5-mm Pitch
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5-V
Supports Down Translation to V_CC
Max t_pd of 3.6 ns at 3.3-V
Low Power Consumption, 10-µA Max I_CC
±24-mA Output Drive at 3.3-V
I_off Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	1
Inputs per channel	2
IOL (max) (mA)	32
IOH (max) (mA)	-32
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 125
