The SN74AHCT367 device is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
| Technology family | AHCT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 6 |
| IOL (max) (mA) | 8 |
| Supply current (max) (µA) | 40 |
| IOH (max) (mA) | -8 |
| Input type | TTL-Compatible CMOS |
| Output type | Push-Pull |
| Features | Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

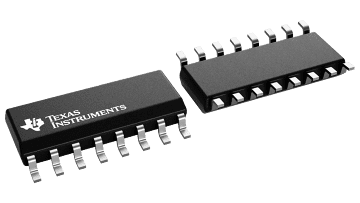

| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |

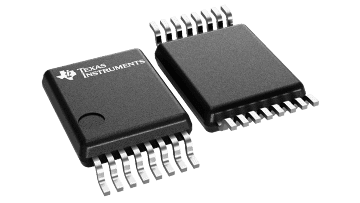

| SSOP (DB) | 16 | 48.36 mm² 6.2 x 7.8 |

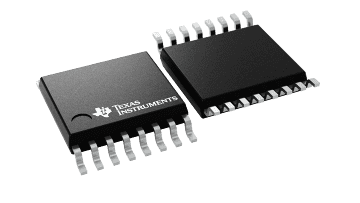

| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
| TVSOP (DGV) | 16 | 23.04 mm² 3.6 x 6.4 |
