This octal buffer/line driver is designed for 2.7-V to 3.6-V VCC operation.

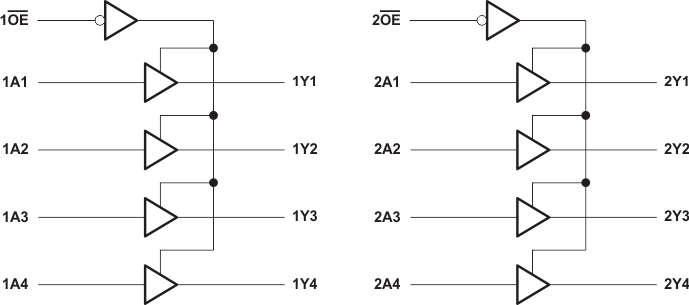

The SN74LVCZ244A device is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
| Technology family | LVC |
| Supply voltage (min) (V) | 2.7 |
| Supply voltage (max) (V) | 3.6 |
| Number of channels | 8 |
| IOL (max) (mA) | 24 |
| Supply current (max) (µA) | 100 |
| IOH (max) (mA) | -24 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Damping resistors, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

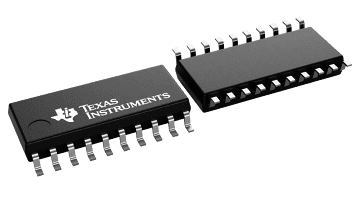

| SOIC (DW) | 20 | 131.84 mm² 12.8 x 10.3 |
| SOP (NS) | 20 | 98.28 mm² 12.6 x 7.8 |
| SSOP (DB) | 20 | 56.16 mm² 7.2 x 7.8 |
| TSSOP (PW) | 20 | 41.6 mm² 6.5 x 6.4 |
