The x92FCT244T devices are octal buffers and line drivers designed to be employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. These devices provide speed and drive capabilities equivalent to their fastest bipolar logic counterparts, while reducing power consumption. The input and output voltage levels allow direct interface with TTL, NMOS, and CMOS devices without external components.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Technology family | FCT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 64 |
| Supply current (max) (µA) | 200 |
| IOH (max) (mA) | -32 |
| Input type | TTL-Compatible CMOS |
| Output type | Push-Pull |
| Features | Balanced outputs, High speed (tpd 10-50ns), Unbuffered |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |

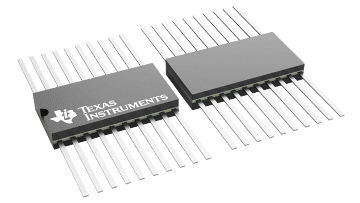

| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
