The x92FCT646T devices consist of a bus transceiver circuit with 3-state, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus is clocked into the registers as the appropriate clock pin goes to a high logic level. Output-enable (G) and direction (DIR) inputs control the transceiver function. In the transceiver mode,data present at the high-impedance port can be stored in either the A or B register, or in both. Select controls (SAB, SBA) can multiplex stored and real-time (transparent mode) data. DIR determines which bus receives data when G is low. In the isolation mode (G is high), A data can be stored in the B register and/or B data can be stored in the A register.
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Number of channels | 8 |
| IOL (max) (mA) | 48 |
| IOH (max) (mA) | -12 |
| Input type | TTL |
| Output type | TTL |
| Features | Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Technology family | FCT |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |

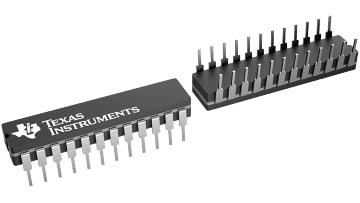

| CDIP (JT) | 24 | 221.44 mm² 32 x 6.92 |

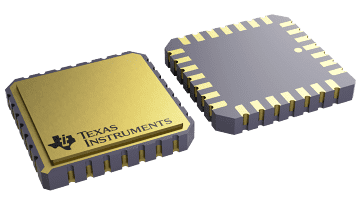

| LCCC (FK) | 28 | 130.6449 mm² 11.43 x 11.43 |
