Each circuit functions as a 2-input NAND gate, but because of the Schmitt action, it has different input threshold levels for positive (VT+) and for negative going (VT-) signals.
These circuits are temperature-compensated and can be triggered from the slowest of input ramps and still give clear, jitter-free output signals.
The SN54132, SN54LS132, and SN54S132 are characterized for operation over the full military temperature range of -55°C to 125°C. The SN74132, SN74LS132, and SN74S132 are characterized for operation from 0°C to 70°C.
| Technology family | S |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 4 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 20 |
| IOH (max) (mA) | -1 |
| Input type | Schmitt-Trigger |
| Output type | Push-Pull |
| Features | High speed (tpd 10- 50ns) |
| Data rate (max) (Mbps) | 40 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 14 | 130.4652 mm² 19.56 x 6.67 |
| CFP (W) | 14 | 58.023 mm² 9.21 x 6.3 |

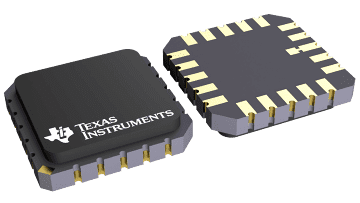

| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
