These octal buffers/drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. When these devices are used with the ’ALS241, ’AS241A, ’ALS244, and ’AS244A devices, the circuit designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs. These devices feature high fan-out and improved fan-in.
The -1 version of SN74ALS240A is identical to the standard version, except that the recommended maximum IOL for the -1 version is 48 mA. There is no -1 version of the SN54ALS240A.
| Technology family | ALS |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 24 |
| IOH (max) (mA) | -15 |
| Supply current (max) (µA) | 25000 |
| Input type | Bipolar |
| Output type | 3-State |
| Features | Very high speed (tpd 5-10ns) |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |

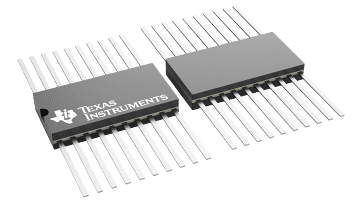

| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
