The SNx4AHC541 octal buffers and drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.
| Technology family | AHC |
| Supply voltage (min) (V) | 2 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 50 |
| Supply current (max) (µA) | 20 |
| IOH (max) (mA) | -50 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |

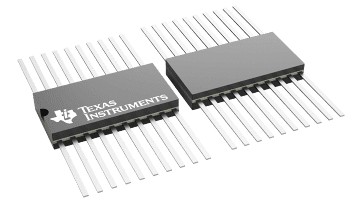

| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
