SN54AHC573

正在供货

产品详情

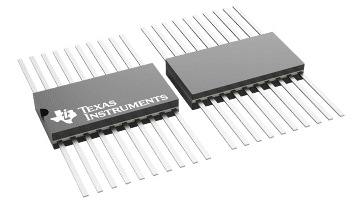

The SNx4AHC573 devices are octal transparent D-type latches designed for 2-V to 5.5-V V_CC operation.

Operating Range 2-V to 5.5-V V_CC
3-State Outputs Directly Drive Bus Lines
Latch-Up Performance Exceeds 250 mA Per JESD 17
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Number of channels	8
Technology family	AHC
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Input type	Standard CMOS
Output type	3-State
Clock frequency (max) (MHz)	110
IOL (max) (mA)	8
IOH (max) (mA)	-8
Supply current (max) (µA)	40
Features	Balanced outputs, Flow-through pinout, High speed (tpd 10-50ns), Over-voltage tolerant inputs
Operating temperature range (°C)	-55 to 125
Rating	Military
