CD4011A

CD4011A

正在供货

军用 4 通道、双输入、3V 至 12V 与非门

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The TI-CD4011A, CD4012A, and CD4023A NAND gates provide the system designer with direct implementation of the NAND function and supplement the existing family of CMOS gates

These types are supplied in 14-lead hermetic dual-in-line ceramic packages (D and F suffixes), 14-lead dual-in-line plastic packages (E suffix), 14-lead ceramic flat packages (K suffix), and in chip form (H suffix).

  • Quiescent current specified to 15V
  • Maximum input leakage of 1 uA at 15 V (full package-temperature range)
  • 1-V noise margin (full package-temperature range)

Technology familyCD4000
Supply voltage (min) (V)3
Supply voltage (max) (V)12
Number of channels4
Inputs per channel2
IOL (max) (mA)0.62
IOH (max) (mA)-0.75
Input typeStandard CMOS
Output typePush-Pull
FeaturesHigh speed (tpd 10- 50ns)
Data rate (max) (Mbps)20
RatingMilitary
Operating temperature range (°C)-55 to 125

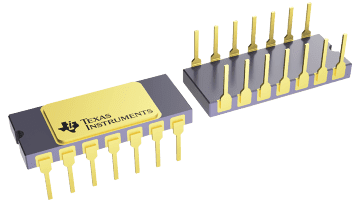

CDIP (J)14130.4652 mm² 19.56 x 6.67
CDIP_SB (JD)14138.9395 mm² 18.55 x 7.49
