These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Taken together with the ´BCT240 and ´BCT241, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical
(active-low output-enable) inputs, and complementary OE and inputs.
The ´BCT244 is organized as two 4-bit buffers/line drivers with separate output-enable () inputs. When is low, the device passes data from the A inputs to the Y outputs. When is high, the outputs are in the high-impedance state.
The SN54BCT244 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74BCT244 is characterized for operation from 0°C to 70°C.
| Technology family | BCT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 64 |
| Supply current (max) (µA) | 80000 |
| IOH (max) (mA) | -15 |
| Input type | Bipolar |
| Output type | 3-State |
| Features | Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |

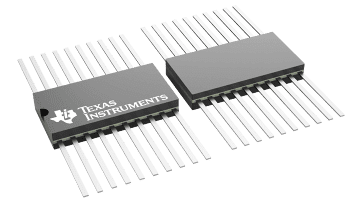

| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |
| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
