These octal transceivers and line drivers are designed for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.
The B-port outputs, which are designed to sink up to 12 mA, include equivalent 25- series resistors to reduce overshoot and undershoot.
When VCC is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking/current-sourcing capability of the driver.
The SN54ABT2245 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT2245 is characterized for operation from -40°C to 85°C.
EPIC-IIB is a trademark of Texas Instruments Incorporated.
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 48 |
| IOH (max) (mA) | -24 |
| Input type | TTL |
| Output type | TTL |
| Features | Damping resistors, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Technology family | ABT |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |

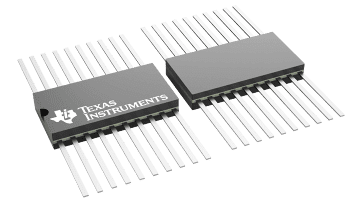

| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
