The SM73302 low noise, CMOS input operational amplifier offers a low input voltage noise density of 5.8 nV/√Hz while consuming only 1.15 mA of quiescent current. The SM73302 is stable at a gain of 10 and has a gain bandwidth (GBW) product of 88 MHz. The SM73302 has a supply voltage range of 1.8V to 5.5V and can operate from a single supply. The SM73302 features a rail-to-rail output stage, and is part of the precision amplifier family and is ideal for a variety of instrumentation applications.
The SM73302 provides optimal performance in low voltage and low noise systems. A CMOS input stage, with typical input bias currents in the range of a few femtoamperes, and an input common mode voltage range, which includes ground, makes the SM73302 ideal for low power sensor applications where high speeds are needed.
The SM73302 is manufactured using an advanced VIP50 process. The SM73302 is offered in a 5-Pin SOT-23 package.
All trademarks are the property of their respective owners.
| Architecture | FET / CMOS Input, Voltage FB |
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 1.8 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| GBW (typ) (MHz) | 88 |
| BW at Acl (MHz) | 8.8 |
| Acl, min spec gain (V/V) | 10 |
| Slew rate (typ) (V/µs) | 28 |
| Vn at flatband (typ) (nV√Hz) | 5.8 |
| Vn at 1 kHz (typ) (nV√Hz) | 5.8 |
| Iq per channel (typ) (mA) | 1.15 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.15 |
| Rail-to-rail | In to V-, Out |
| Features | Decompensated |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |
| CMRR (typ) (dB) | 100 |
| Input bias current (max) (pA) | 1 |

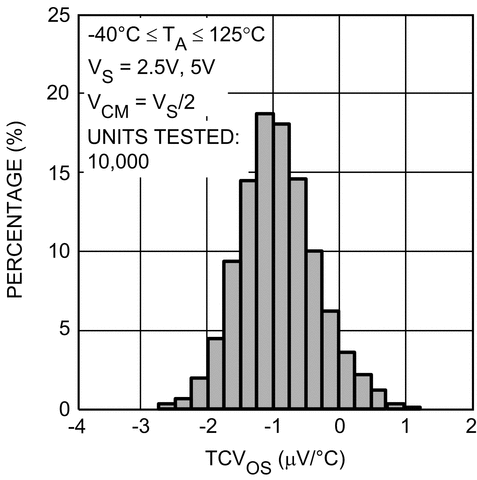

| Offset drift (typ) (µV/°C) | 1 |
| Iout (typ) (mA) | 21 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
