The ’279 offers 4 basic S-R flip-flop latches in one 16-pin, 300-mil package. Under conventional operation, the S-R inputs are normally held high. When the S input is pulsed low, the Q output will be set high. When R is pulsed low, the Q output will be reset low. Normally, the S-R inputs should not be taken low simultaneously. The Q output will be unpredictable in this condition.
| Function | RS latch |
| Number of channels | 4 |
| Technology family | LS |
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Input type | Bipolar |
| Output type | Push-Pull |
| Data rate (max) (Mbps) | 70 |
| IOL (max) (mA) | 4 |
| IOH (max) (mA) | -0.4 |
| Features | Very high speed (tpd 5-10ns) |
| Operating temperature range (°C) | -55 to 125 |
| Rating | Military |
| CDIP (J) | 16 | 135.3552 mm² 19.56 x 6.92 |

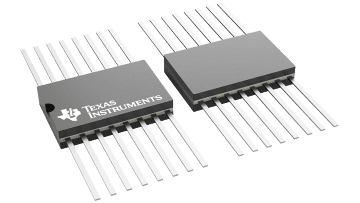

| CFP (W) | 16 | 69.319 mm² 10.3 x 6.73 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
