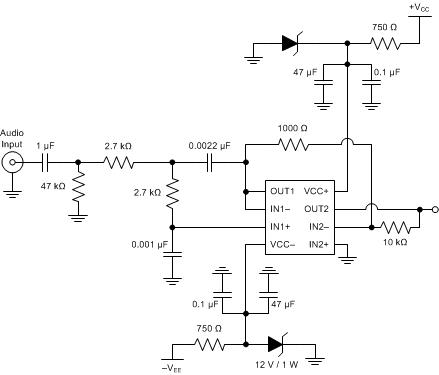

The LM833 device is a dual operational amplifier with high-performance specifications for use in quality audio and data-signal applications. Dual amplifiers are utilized widely in audio circuits optimized for all preamp and high level stages in PCM and HiFi systems. The LM833 device is pin-for-pin compatible with industry-standard dual operation amplifiers. With addition of a preamplifier, the gain of the power stage can be greatly reduced to improve performance.
All other trademarks are the property of their respective owners
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 36 |
| GBW (typ) (MHz) | 16 |
| Slew rate (typ) (V/µs) | 7 |
| Rail-to-rail | No |
| Vos (offset voltage at 25°C) (max) (mV) | 2 |
| Iq per channel (typ) (mA) | 2 |
| Vn at 1 kHz (typ) (nV√Hz) | 4.5 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Iout (typ) (A) | 0.029 |
| Architecture | Bipolar |
| CMRR (typ) (dB) | 100 |
| Input bias current (max) (pA) | 750000 |

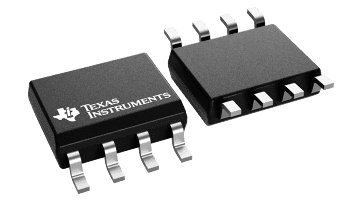

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |

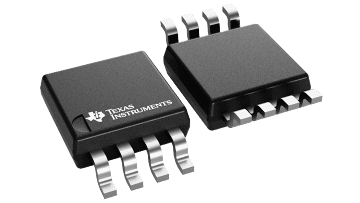

| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
