The INA271 is a current-shunt monitor with voltage output and can sense drops across current shunts at common-mode voltages from –16V to +80V, independent of the supply voltage. The INA271 pinouts readily enable filtering.
The INA271 is available with a 20V/V output voltage scale. The 130kHz bandwidth simplifies use in current-control loops.
The INA271 operates from a single +2.7V to +18V supply, drawing a maximum of 1600µA of supply current. This device is specified over the extended operating temperature range of –55°C to +210°C.
(1) Custom temperature ranges
| Product type | Analog output |
| Common-mode voltage (max) (V) | 80 |
| Common-mode voltage (min) (V) | -16 |
| Input offset (±) (max) (µV) | 10000 |
| Input offset drift (±) (typ) (µV/°C) | 42 |
| Voltage gain (V/V) | 20 |
| CMRR (min) (dB) | 100 |
| Bandwidth (kHz) | 130 |
| Supply voltage (max) (V) | 18 |
| Supply voltage (min) (V) | 2.7 |
| Iq (max) (mA) | 0.95 |
| Number of channels | 1 |
| Comparators (#) | 0 |
| Gain error (%) | 2 |
| Gain error drift (±) (max) (ppm/°C) | 300 |
| Slew rate (V/µs) | 1 |
| Features | Low-side Capable |
| Rating | High Temp |
| Operating temperature range (°C) | -55 to 210 |

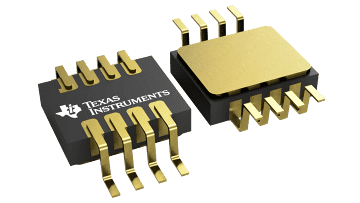

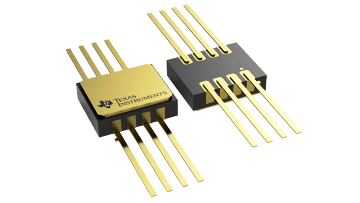

| CFP (HKJ) | 8 | 38.985 mm² 6.9 x 5.65 |
| CFP (HKQ) | 8 | 38.985 mm² 6.9 x 5.65 |
| DIESALE (KGD) | — | See data sheet |
