These Hex buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus oriented receivers and transmitters. The designer has choice of selected combinations of inverting and noninverting outputs, symmetrical G (active-low control) inputs.
These devices feature high fan-out, improved fan-in, and can be used to drive terminated lines down to 133 ohms.
The SN54365A thru SN54368A and SN54LS365A thru SN54LS368A are characterized for operation over the full military temperature range of -55°C to 125°C. The SN74365A thru SN74368A and SN74LS365A thru SN74LS368A are characterized for operation from 0°C to 70°C.
| Technology family | LS |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 6 |
| IOL (max) (mA) | 24 |
| IOH (max) (mA) | -2.6 |
| Supply current (max) (µA) | 21000 |
| Input type | Bipolar |
| Output type | 3-State |
| Features | High speed (tpd 10-50ns) |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 16 | 135.3552 mm² 19.56 x 6.92 |

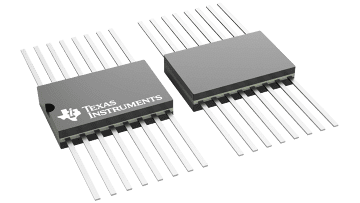

| CFP (W) | 16 | 69.319 mm² 10.3 x 6.73 |
