These data selectors/multiplexers contain full binary decoding to select one-of-eight data sources and feature controlled complementary 3-state outputs.
The 3-state outputs can interface with and drive data lines of bus-organized systems. With all but one of the common outputs disabled (at the high-impedance state), the low impedance of the signal-enabled output drives the bus line to a high or low logic level. Both outputs are controlled by the output-enable (OE) input. The outputs are disabled when
is high.
The SN54ALS251 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS251 is characterized for operation from 0°C to 70°C.
D0, D1,...D7 = the level of the respective D input
| Technology family | ALS |
| Function | Digital Multiplexer |
| Configuration | 8 |
| Number of channels | 1 |
| Operating temperature range (°C) | -55 to 125 |
| Rating | Military |
| CDIP (J) | 16 | 135.3552 mm² 19.56 x 6.92 |

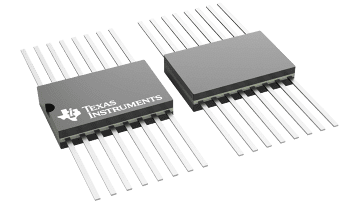

| CFP (W) | 16 | 69.319 mm² 10.3 x 6.73 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
