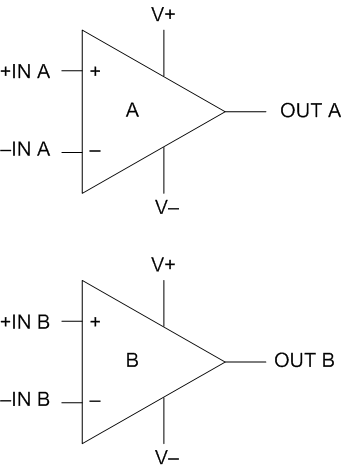

The TLV3502-Q1 push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input common-mode range makes the device an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic.

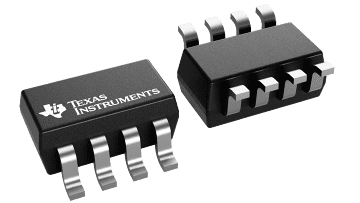

A microsize package provides options for portable and space-restricted applications. The TLV3502-Q1 device is available in the SOT23-8 (DCN) package.
All other trademarks are the property of their respective owners
| Number of channels | 2 |
| Output type | Push-Pull |
| Propagation delay time (µs) | 0.0045 |
| Vs (max) (V) | 5.5 |
| Vs (min) (V) | 2.7 |
| Vos (offset voltage at 25°C) (max) (mV) | 6.5 |
| Iq per channel (typ) (mA) | 3.2 |
| Input bias current (±) (max) (nA) | 0.01 |
| Rail-to-rail | In |
| Rating | Automotive |
| Operating temperature range (°C) | -40 to 125 |
| Features | Hysteresis |
| VICR (max) (V) | 5.7 |
| VICR (min) (V) | -0.2 |
| SOT-23 (DCN) | 8 | 4.64 mm² 2.9 x 1.6 |
