These devices are positive-edge-triggered D-type
flip-flops with a direct clear (CLR) input.
Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input has no effect at the output.
| Number of channels | 8 |
| Technology family | AHC |
| Supply voltage (min) (V) | 2 |
| Supply voltage (max) (V) | 5.5 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Clock frequency (max) (MHz) | 110 |
| IOL (max) (mA) | 8 |
| IOH (max) (mA) | -8 |
| Supply current (max) (µA) | 40 |
| Features | Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs |
| Operating temperature range (°C) | -55 to 125 |
| Rating | Military |
| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |

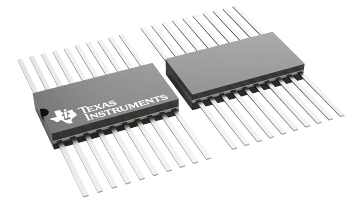

| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
