SN74LVC06A

SN74LVC06A

正在供货

具有漏极开路输出的 6 通道、1.65V 至 3.6V 反相器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

These hex inverter buffers/drivers are designed for 1.65-V to 3.6-V VCC operation.

The outputs of the 'LVC06A devices are open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 24 mA.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

  • Operate From 1.65 V to 3.6 V
  • Specified From -40°C to 85°C, -40°C to 125°C, and -55°C to 125°C
  • Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
  • Max tpd of 3.7 ns at 3.3 V
  • Ioff Supports Partial-Power-Down Mode Operation
  • Latch-Up Performance Exceeds 250 mA Per JESD 17

Technology familyLVC
Supply voltage (min) (V)1.65
Supply voltage (max) (V)3.6
Number of channels6
IOL (max) (mA)24
IOH (max) (mA)0
Supply current (max) (µA)40
Input typeStandard CMOS
Output typeOpen-drain
FeaturesOver-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
RatingCatalog
Operating temperature range (°C)-40 to 125

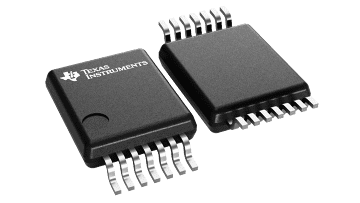

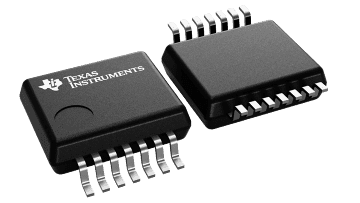

SOIC (D)1451.9 mm² 8.65 x 6
SOP (NS)1479.56 mm² 10.2 x 7.8
SSOP (DB)1448.36 mm² 6.2 x 7.8
TSSOP (PW)1432 mm² 5 x 6.4
TVSOP (DGV)1423.04 mm² 3.6 x 6.4
VQFN (RGY)1412.25 mm² 3.5 x 3.5
