SN74LVC04A

正在供货

6 通道、1.65V 至 3.6V 反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The SNx4LVC04A hex inverters contains six independent inverters designed for 2.7-V to 3.6-V V_CC operation, and the SN74LVC04A hex inverter contains six independent inverters designed for 1.65-V to 3.6-V V_CC operation. The SNx4LVC04A devices perform the Boolean function Y = A.

Inputs can be driven from 1.8-V or 3.3-V devices. This feature allows the use of these devices as translators in a mixed 1.8-V or 3.3-V system environment.

Operate From 1.65 V to 3.6 V
Specified From –40°C to 85°C, –40°C to 125°C, and –55°C to 125°C
Inputs Accept Voltages to 5.5 V
Maximum t_pd of 4.5 ns at 3.3 V
Typical V_OLP (Output Ground Bounce) <0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot) >2 V at V_CC = 3.3 V, T_A = 25°C
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- Power Sub-Station Controls
- Ethernet Switches
- Flow Meters
- I/O Modules and Digital PLC/DCS Inputs
- Servers
- Tests and Measurement

All other trademarks are the property of their respective owners

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	3.6
Number of channels	6
IOL (max) (mA)	24
IOH (max) (mA)	-24
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

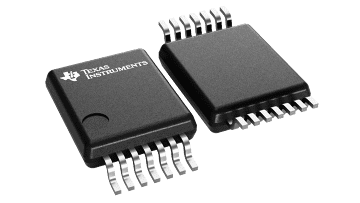

SOIC (D)	14	51.9 mm² 8.65 x 6
SOP (NS)	14	79.56 mm² 10.2 x 7.8
SSOP (DB)	14	48.36 mm² 6.2 x 7.8
TSSOP (PW)	14	32 mm² 5 x 6.4
TVSOP (DGV)	14	23.04 mm² 3.6 x 6.4
VQFN (RGY)	14	12.25 mm² 3.5 x 3.5
