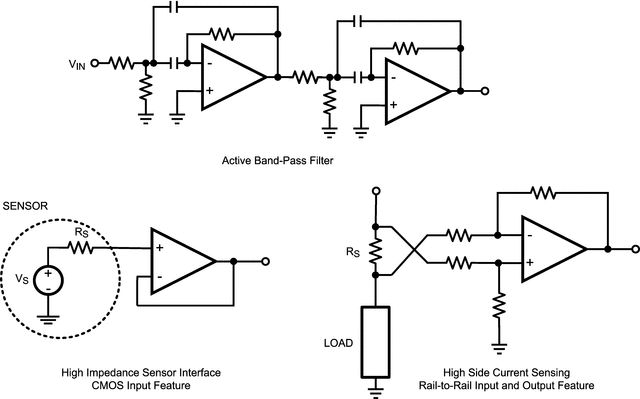

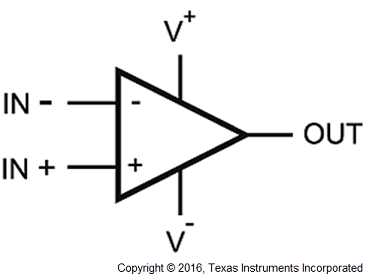

LMV84x-Q1 器件是低电压和低功耗运算放大器,在 2.7V 至 12V 电源电压范围内工作,具有轨至轨输入和输出功能。其低失调电压、低电源电流和 CMOS 输入特性使得它们非常适合高阻抗传感器接口和电池供电的 应用。
单 LMV841-Q1 采用节省空间的 5 引脚 SC70 封装,双 LMV842-Q1 采用 8 引脚 VSSOP 和 8 引脚 SOIC 封装,而四 LMV844-Q1 采用 14 引脚 TSSOP 和 14 引脚 SOIC 封装。这些小型封装是空间受限型 PCB 和便携式电子产品的理想解决方案。
LMV841-Q1、LMV842-Q1 和 LMV844-Q1 针对汽车市场引进了增强型制造和支持流程,包括缺陷检测方法。可靠性鉴定符合 AEC-Q100 标准中定义的要求和温度等级。
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 12 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.7 |

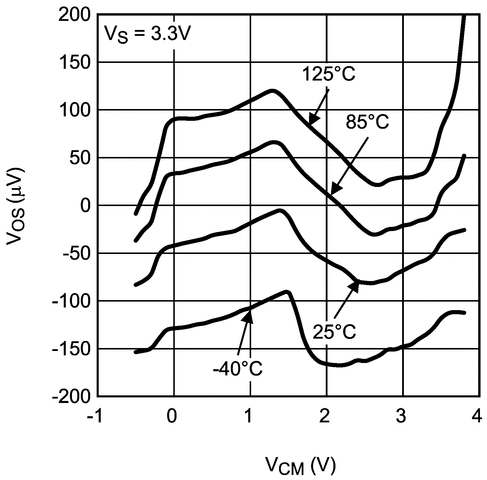

| Vos (offset voltage at 25°C) (max) (mV) | 0.5 |
| GBW (typ) (MHz) | 4.5 |
| Features | Small Size |
| Slew rate (typ) (V/µs) | 2.5 |
| Rail-to-rail | In, Out |
| Offset drift (typ) (µV/°C) | 0.35 |
| Iq per channel (typ) (mA) | 0.96 |
| Vn at 1 kHz (typ) (nV√Hz) | 20 |
| CMRR (typ) (dB) | 112 |
| Rating | Automotive |
| Operating temperature range (°C) | -40 to 125 |
| Input bias current (max) (pA) | 10 |
| Iout (typ) (A) | 0.033 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.2 |
| Input common mode headroom (to positive supply) (typ) (V) | 0.2 |
| Output swing headroom (to negative supply) (typ) (V) | 0.038 |
| Output swing headroom (to positive supply) (typ) (V) | -0.032 |
| THD + N at 1 kHz (typ) (%) | 0.003 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |
