The SN74LVC126A device is a quadruple bus buffer gate designed for 1.65-V to 3.6-V VCC operation.

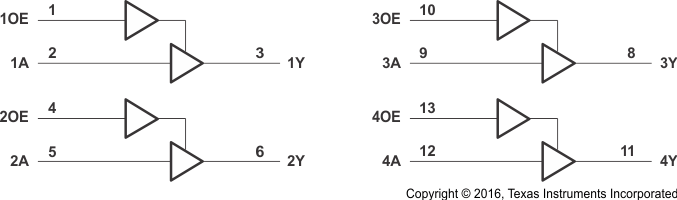

The SN74LVC126A device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is low.
To ensure the high-impedance state during power up or power down, OE must be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V and 5-V system environment.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 3.6 |
| Number of channels | 4 |
| IOL (max) (mA) | 24 |
| Supply current (max) (µA) | 40 |
| IOH (max) (mA) | -24 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

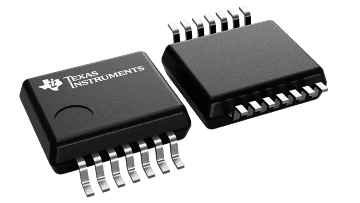

| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
| SOP (NS) | 14 | 79.56 mm² 10.2 x 7.8 |
| SSOP (DB) | 14 | 48.36 mm² 6.2 x 7.8 |

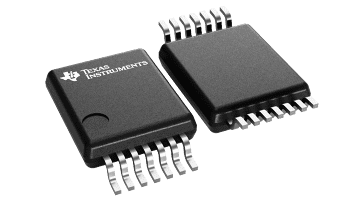

| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
| TVSOP (DGV) | 14 | 23.04 mm² 3.6 x 6.4 |
| VQFN (RGY) | 14 | 12.25 mm² 3.5 x 3.5 |
