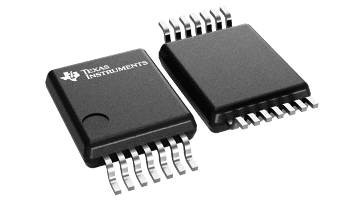

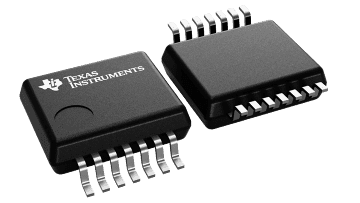

SN74LV07A

正在供货

产品详情

These hex buffers/drivers are designed for 2-V to
5.5-V V_CC operation.

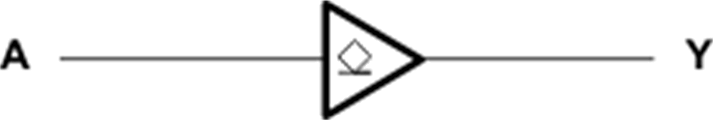

The SN74LV07A device performs the Boolean function Y = A in positive logic.

2-V to 5.5-V V_CC Operation
Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
> 2.3 V at V_CC = 3.3 V, T_A = 25°C
Outputs are Disabled During Power Up
and Power Down With Inputs Tied to V_CC
Support Mixed-Mode Voltage Operation
on All Ports
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model

Technology family	LV-A
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Number of channels	6
IOL (max) (mA)	16
Supply current (max) (µA)	20
IOH (max) (mA)	0
Input type	Standard CMOS
Output type	Open-drain
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125
