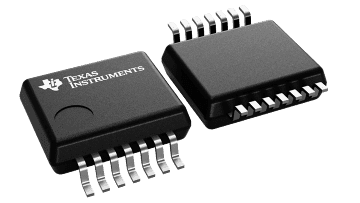

SN74LVU04A

正在供货

产品详情

These hex inverters are designed for 2-V to 5.5-V V_CC operation.

The ’LVU04A devices contain six independent inverters with unbuffered outputs. These devices perform the Boolean function Y = A.

2-V to 5.5-V V_CC Operation
Unbuffered Outputs
Max t_pd of 6.5 ns at 5 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2.3 V at V_CC = 3.3 V, T_A = 25°C
Supports Mixed-Mode Voltage Operation on All Ports
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Technology family	LVT
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Number of channels	6
IOL (max) (mA)	12
IOH (max) (mA)	-12
Supply current (max) (µA)	20
Input type	Standard CMOS
Output type	Push-Pull
Features	Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs, Unbuffered
Rating	Catalog
Operating temperature range (°C)	-40 to 85
