The ’LV132A devices are quadruple positive-NAND gates designed for 2-V to 5.5-V VCC operation.

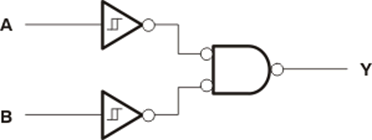

The ’LV132A devices perform the Boolean function Y = A • B or Y = A + B in positive logic.
Each circuit functions as a NAND gate, but because of the Schmitt trigger, it has different input threshold levels for positive- and negative-going signals.
These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean jitter-free output signals.
All other trademarks are the property of their respective owners

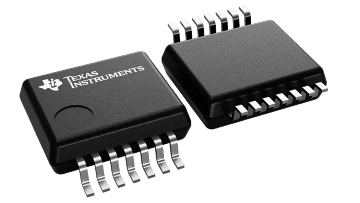

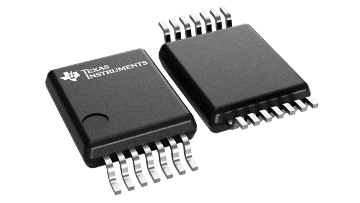

| Technology family | LV-A |
| Supply voltage (min) (V) | 2 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 4 |
| Inputs per channel | 4 |
| IOL (max) (mA) | 12 |
| IOH (max) (mA) | -12 |
| Input type | Schmitt-Trigger |
| Output type | Push-Pull |
| Features | High speed (tpd 10- 50ns), Over-voltage tolerant inputs, Partial power down (Ioff) |
| Data rate (max) (Mbps) | 70 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
| SOP (NS) | 14 | 79.56 mm² 10.2 x 7.8 |
| SSOP (DB) | 14 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
| TVSOP (DGV) | 14 | 23.04 mm² 3.6 x 6.4 |
