CD40107B

正在供货

具有开漏输出的 2 通道、双输入、3V 至 18V 与非门

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

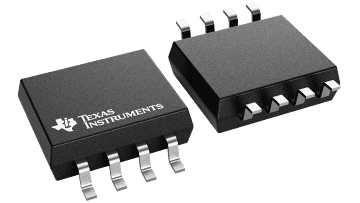

The CD40107B is a dual 2-input NAND buffer/driver containing two independent 2-input NAND buffers with open-drain single n-channel transistor outputs. This device features a wired-OR capability and high output sink current capability (136 mA typ. at V_DD = 10 V, V_DS= 1 V). The CD40107B is supplied in 8-lead hermetic dual-in-line ceramic packages (F3A suffix), 8-lead dual-in-line plastic packages (E suffix), 8-lead small-outline packages (M, M96, MT, and PSR suffixes), and 8-lead thin shrink small-outline packages (PW and PWR suffixes).

32 times standard B-Series output current drive sinking capability - 136 mA typ. @ V_DD = 10 V, V_DS = 1 V
100% tested for quiescent current at 20 V
Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
5-V, 10-V, and 15-V parametric ratings
Noise margin, full package temperature range, R_L to V_DD = 10 k:
   1 V at V_DD = 5 V
   2 V at V_DD = 10 V
   2.5 V at V_DD = 15 V
Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Applications
- Driving relays, lamps, LEDs
- Line driver
- Level shifter (up or down)

Technology family	CD4000
Supply voltage (min) (V)	3
Supply voltage (max) (V)	18
Number of channels	2
Inputs per channel	2
IOL (max) (mA)	89
IOH (max) (mA)	0
Input type	Standard CMOS
Output type	Open-drain
Features	Standard speed (tpd > 50ns)
Data rate (max) (Mbps)	8
Rating	Catalog
Operating temperature range (°C)	-55 to 125

PDIP (P)	8	92.5083 mm² 9.81 x 9.43
SOIC (D)	8	29.4 mm² 4.9 x 6
SOP (PS)	8	48.36 mm² 6.2 x 7.8
TSSOP (PW)	8	19.2 mm² 3 x 6.4
