The CD74HCU04 unbuffered hex inverter utilizes silicon-gate CMOS technology to achieve operation speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. These devices are especially useful in crystal oscillator and analog applications.
| Technology family | HC |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 6 |
| IOL (max) (mA) | 5.2 |
| IOH (max) (mA) | -5.2 |
| Supply current (max) (µA) | 40 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Balanced outputs, High speed (tpd 10-50ns), Input clamp diode, Unbuffered |
| Rating | Catalog |
| Operating temperature range (°C) | -55 to 125 |
| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |

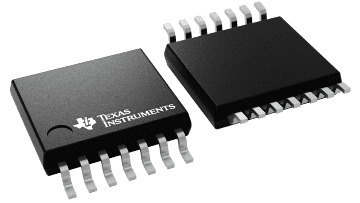

| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
