CD40106B

正在供货

具有施密特触发输入的 6 通道 3V 至 18V 反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

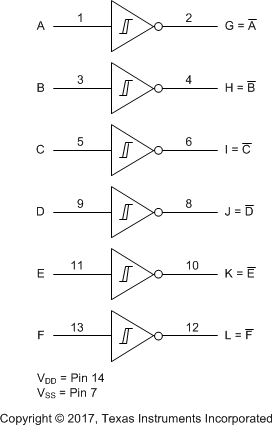

The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (V_P) and the negative-going voltages (V_N) is defined as hysteresis voltage (V_H).

The CD40106B device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for –55°C to +125°C ambient temperature operation.

Schmitt-Trigger Inputs
Hysteresis Voltage (Typical):
- 0.9 V at V_DD = 5 V
- 2.3 V at V_DD = 10 V
- 3.5 V at V_DD = 15 V
Noise Immunity Greater Than 50%
No Limit On Input Rise and Fall Times
Standardized, Symmetrical Output Characteristics
For Quiescent Current at 20 V
Maximum Input Current Of 1 µA at 18 V Over Full Package Temperature Range:
- 100 nA at 18 V and 25°C
Low V_DD and V_SS Current During Slow Input Ramp
5-V, 10-V, and 15-V Parametric Ratings

Technology family	CD4000
Supply voltage (min) (V)	3
Supply voltage (max) (V)	18
Number of channels	6
IOL (max) (mA)	2.4
IOH (max) (mA)	-2.4
Supply current (max) (µA)	120
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Balanced outputs, Input clamp diode, Standard speed (tpd > 50ns)
Rating	Catalog
Operating temperature range (°C)	-55 to 125

PDIP (N)	14	181.42 mm² 19.3 x 9.4
SOIC (D)	14	51.9 mm² 8.65 x 6
SOP (NS)	14	79.56 mm² 10.2 x 7.8
TSSOP (PW)	14	32 mm² 5 x 6.4
