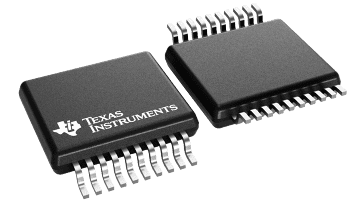

SN74LVC540A

正在供货

具有三态输出的 8 通道、1.65V 至 3.6V 反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The SN54LVC540A octal buffer/driver is designed for 2.7-V to 3.6-V V_CC operation, and the SN74LVC540A octal buffer/driver is designed for 1.65-V to 3.6-V V_CC operation.

Operate From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max t_pd of 5.3 ns at 3.3 V
Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
> 2 V at V_CC = 3.3 V, T_A = 25°C
Support Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V V_CC)
I_off Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	3.6
Number of channels	8
IOL (max) (mA)	24
IOH (max) (mA)	-24
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	3-State
Features	Balanced outputs, Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

SOIC (DW)	20	131.84 mm² 12.8 x 10.3
SOP (NS)	20	98.28 mm² 12.6 x 7.8
SSOP (DB)	20	56.16 mm² 7.2 x 7.8
TSSOP (PW)	20	41.6 mm² 6.5 x 6.4
TVSOP (DGV)	20	32 mm² 5 x 6.4
