The SNx4AHC540 octal buffers/drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.
| Technology family | AHC |
| Supply voltage (min) (V) | 2 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 8 |
| IOH (max) (mA) | -8 |
| Supply current (max) (µA) | 40 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

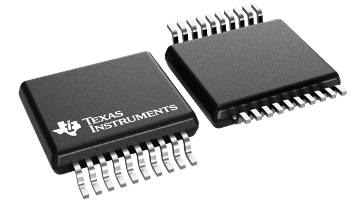

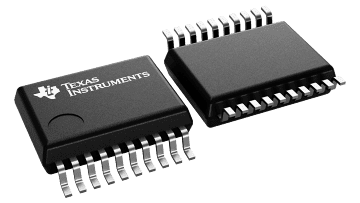

| PDIP (N) | 20 | 228.702 mm² 24.33 x 9.4 |
| SOIC (DW) | 20 | 131.84 mm² 12.8 x 10.3 |
| SSOP (DB) | 20 | 56.16 mm² 7.2 x 7.8 |
| TSSOP (PW) | 20 | 41.6 mm² 6.5 x 6.4 |
| TVSOP (DGV) | 20 | 32 mm² 5 x 6.4 |
