SN74ALVC125

SN74ALVC125

正在供货

具有三态输出的 4 通道、1.65V 至 3.6V 缓冲器

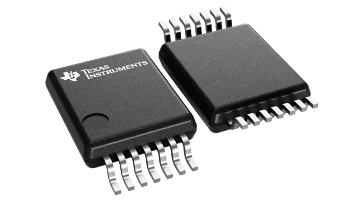

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVC125 features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

  • Operates From 1.65 V to 3.6 V
  • Max tpd of 2.8 ns at 3.3 V
  • ±24-mA Output Drive at 3.3 V
  • Latch-Up Performance Exceeds 250 mA Per JESD 17
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model (A114-A)
    • 200-V Machine Model (A115-A)
    • 1000-V Charged-Device Model (C101)

Technology familyALVC
Supply voltage (min) (V)1.65
Supply voltage (max) (V)3.6
Number of channels4
IOL (max) (mA)24
Supply current (max) (µA)10
IOH (max) (mA)-24
Input typeStandard CMOS
Output type3-State
FeaturesBalanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)
RatingCatalog
Operating temperature range (°C)-40 to 85
SOIC (D)1451.9 mm² 8.65 x 6
SOP (NS)1479.56 mm² 10.2 x 7.8
TSSOP (PW)1432 mm² 5 x 6.4
TVSOP (DGV)1423.04 mm² 3.6 x 6.4
