CD4086B

CD4086B

正在供货

CMOS 可扩展 4 宽度双输入与或非门

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

CD4086B contains one 4-wide 2-input AND-OR-INVERT gate with an INHIBIT/(EXP) input and an ENABLE/EXP input. For a 4-wide A-O-I function INHIBIT/(EXP) is tied to VSS and ENABLE/EXP to VDD. See Fig. 10 and its associated explanation for applications where a capability greater than 4-wide is required.

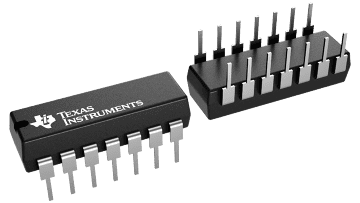

The CD4086B types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

  • Medium-speed operation - tPHL = 90 ns; tPLH = 140 ns (typ.) at 10 V
  • INHIBIT and ENABLE inputs
  • Buffered outputs
  • 100% tested for quiescent current at 20 V
  • Maximum input leakage current of 18 V over full package-temperature range; 100 nA at 18 V and 25°C
  • Noise margin (over full package temperature range):
        1 V at VDD = 5 V
        2 V at VDD = 10 V
        2.5 V at VDD = 15 V
  • Standardized, symmetrical output characteristics
  • 5-V, 10-V, and 15-V parametric ratings
  • Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"

Technology familyCD4000
Supply voltage (min) (V)3
Supply voltage (max) (V)18
Number of channels1
Inputs per channel2
IOL (max) (mA)6.8
IOH (max) (mA)-6.8
Input typeStandard CMOS
Output typePush-Pull
FeaturesStandard speed (tpd > 50ns)
Data rate (max) (Mbps)8
RatingCatalog
Operating temperature range (°C)-55 to 125
PDIP (N)14181.42 mm² 19.3 x 9.4
SOIC (D)1451.9 mm² 8.65 x 6
