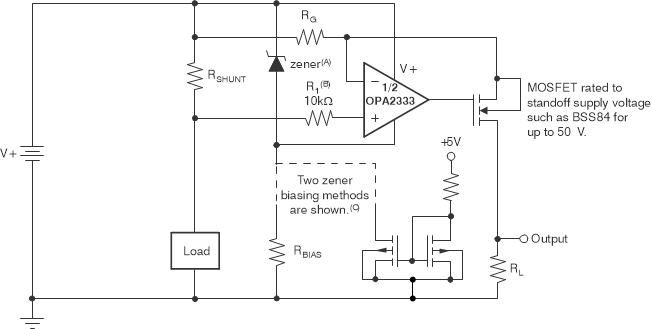

这款 CMOS 运算放大器 OPA2333-Q1 使用专有自动校准技术,可在随时间推移和温度变化的同时提供超低的失调电压(10µV,最大值)以及几乎为零的温漂。这些高精度、低静态电流微型放大器可提供高阻抗输入(共模范围在电源轨基础上向外扩展了 100mV)和轨至轨输出(摆幅在相对于电源轨 50mV 以内)。此器件可以使用低至 1.8V (±0.9V) 和高达 5.5V (±2.75V) 的单电源或双电源,并且针对低电压、单电源运行情况进行了优化。

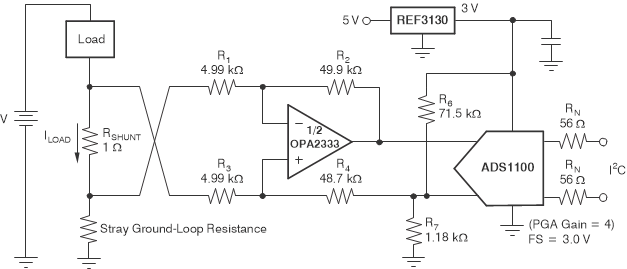

OPA2333-Q1 提供出色的高共模抑制比 (CMRR),而不存在与传统互补输入级关联的交叉。该设计可在驱动模数转换器 (ADC) 的过程中实现优异的性能,而不会降低微分线性。
OPA2333-Q1 的额定工作温度范围为 –40°C 至 +125°C。
添加了
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 1.8 |
| Vos (offset voltage at 25°C) (max) (mV) | 0.01 |
| GBW (typ) (MHz) | 0.35 |
| Features | EMI Hardened, Zero Drift |
| Slew rate (typ) (V/µs) | 0.16 |
| Rail-to-rail | In, Out |
| Offset drift (typ) (µV/°C) | 0.02 |
| Iq per channel (typ) (mA) | 0.017 |
| Vn at 1 kHz (typ) (nV√Hz) | 55 |
| CMRR (typ) (dB) | 130 |
| Rating | Automotive |
| Operating temperature range (°C) | -40 to 125 |
| TI functional safety category | Functional Safety-Capable |
| Input bias current (max) (pA) | 200 |
| Iout (typ) (A) | 0.005 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.1 |
| Input common mode headroom (to positive supply) (typ) (V) | 0.1 |
| Output swing headroom (to negative supply) (typ) (V) | 0.03 |
| Output swing headroom (to positive supply) (typ) (V) | -0.03 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
