The ’ACT86 devices are quadruple 2-input exclusive-OR gates. The devices perform the Boolean functions Y = A
B = AB + AB in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
| Technology family | ACT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 4 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 24 |
| Input type | TTL-Compatible CMOS |
| IOH (max) (mA) | -24 |
| Output type | Push-Pull |
| Features | Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Data rate (max) (Mbps) | 90 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

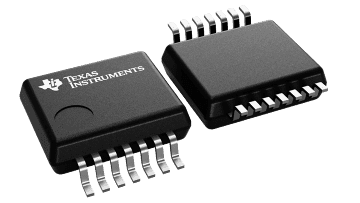

| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
| SOP (NS) | 14 | 79.56 mm² 10.2 x 7.8 |
| SSOP (DB) | 14 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
