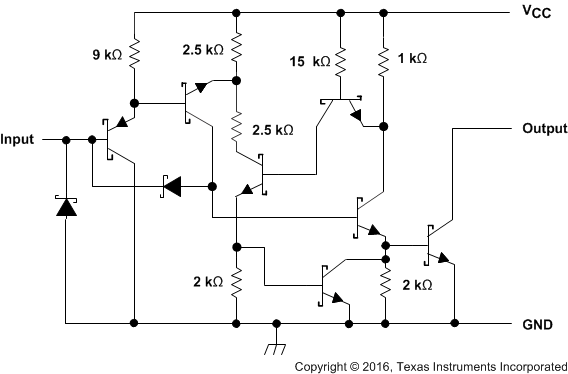

The SNx4LS06 devices feature high-voltage, open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also are characterized for use as inverter buffers for driving TTL inputs. The SNx4LS06 devices have a rated output voltage of 30 V.
| Technology family | LS |
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Number of channels | 6 |
| IOL (max) (mA) | 40 |
| IOH (max) (mA) | 0 |
| Supply current (max) (µA) | 60000 |
| Input type | Bipolar |
| Output type | Open-collector |
| Features | High speed (tpd 10-50ns), Input clamp diode |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |

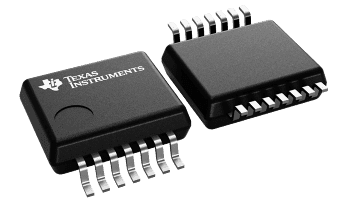

| PDIP (N) | 14 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
| SOP (NS) | 14 | 79.56 mm² 10.2 x 7.8 |
| SSOP (DB) | 14 | 48.36 mm² 6.2 x 7.8 |
